NF5280M6

NF5280M6

    $999,999.00

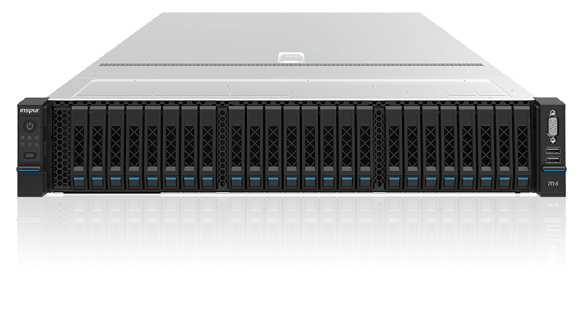

    NF5280M6 is a high-end 2U 2-socket rackmount server configured with the 3rd Gen Intel®Xeon®Scalable Processors. For different application scenarios, NF5280M6 maintains the consistent high-quality and reliability. The product meets the application configuration requirements of various industries with high computing performance, complete ecological compatibility, and flexible configuration, and is suitable for various application scenarios such as data analysis and processing, deep learning, and distributed storage etc.

    Category:
      Form   Factor 2U rack
      Processor 1, Supporting 1/2 * 3rd Gen Intel®Xeon® Scalable Processors

      2, Max. processor core: up to 40 cores (freq.2.3GHz)

      3, Max. processor frequency: 3.6GHz (4 cores)

      4, 3 * UPIs and each supports 11.2GT/s

      5, TDP: up to 270W
      Chipset Intel® C621A
      Memory 1, Up to 32 * DIMMs (8 channels /CPU, each channel supports 2 DIMMs)

      2, Each CPU supports up to 16 * DIMMs, dual CPU supports 32 * DIMMs (up to 3200MT)

      3, Supporting RDIMM and BPS

      4, Memory Protection Schemes: ECC

      5, Memory Mirroring; Memory-Level Protection
      Storage Front:

      24 * 2.5-inch SATA/SAS/NVMe SSDs (hot swappable)

      25 * 2.5-inch SATA/SAS SSDs   (hot swappable)

      12 * 2.5-inch/3.5-inch SATA/SAS/NVMe SSDs (hot swappable)

      Rear:

      4 * 2.5-inch SATA/SAS/NVMe SSDs (hot swappable)

      4 * 3.5-inch SATA/SAS SSDs (hot wappable)

      10 * 2.5-inch SATA/SAS SSDs (hot swappable)

      (Optional) 2 * SATA M.2 or E1.S

      Internal:

      (Optional) 4 * 3.5-inch SATA/SAS SSDs

      (Optional) max. 2 * TF cards (1 * BIOS; 1 * BMC)
      Storage Controller RAID controller, SAS controller

      Onboard PCH supports 14 * SATA interfaces.

      Onboard Intel® NVMe controller, NVMe RAID Key (optional)
      NIC 1 * OCP3.0 (optional), 10/25/40/100/200G

      2 * Onboard 10G Ethernet ports

      Standard NICs: 1/10/25/40/100G
      I/O Scalable Slot Up to 11 * PCIe slots

      4 * DW GPUs or 8 * SW GPUs

      1 * OCP3.0 x16 NIC

      1 * RAID Mezz card
      Interface 2 * Rear USB3.0, 1 * Front USB3.0, 1 * Front USB2.0

      1 * Front VGA

      1 * Rear VGA
      System Fan 4 * Hot-swappable N+1 redundancy fans
      PSU Supporting 2 * 550W/800W/1300W/1600W/2000W   CRPS PSU 1+1 redundancy
      System Management 1 * Onboard independent 1000Mbps serial port for IPMI remote management
      OS Microsoft Windows Sever, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc.
      Dimension

      (W x H x D)

      		 478.8mm x 87mm x 811.7mm (with mount ears)

      435mm x 87mm x 780mm (without mount ears)
      Weight <37.5kg (82.67 lbs) at highest configuration
      Working Temperature 5℃~45℃ (41℉~113℉)
